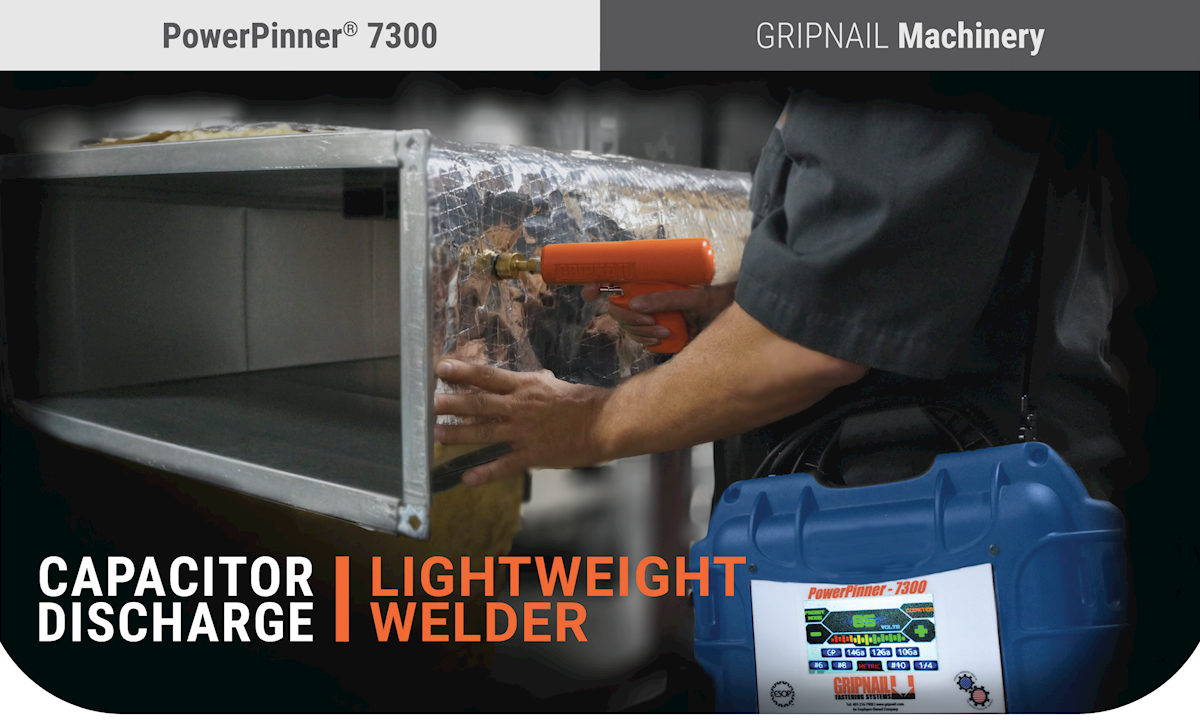

The PowerPinner 7300 is a Capacitor Discharge (CD) welder designed to fasten 10 or 12 gauge cupped head weld pins to galvanized sheet metal. It is light weight and the 15 pin per minute duty cycle makes it perfect for attaching duct wrap in the field. This welder weighs only 11 pounds and runs on 120 VAC current. Simply place the weld pin on the magnetic gun tip, press the pin through the insulation and pull the trigger to weld pins up to
4 inches long.
An advanced lightweight design, with handle, makes maneuvering the 11 lbs. power unit very easy.
With the capability of 15 pins per minute, this unit is made for field application.
120 VAC at 50/60Hz 10 Amp Circuit // 230 VAC at 50/60 Hz 5 Amp Circuit
Gun - 21 feet, #4 weld cable and #18/2 control cable
Ground - 15 feet, #4 weld cable, terminating in a C Style ground clamp
For peak performance, it is highly recommended using GRIPNAIL’s full line of Cup Head Weld Pins. Available in three different cap sizes, multiple shank diameters, and a variety of lengths
Terminal connections on the capacitor are over 5/8 inches in diameter for a good seat on the terminal buss bars to increase reliability.
An easy-to-use Touchscreen interface offers preset values for fast, accurate, and repeatable weld settings. Operation specific information and diagnostic indicators are also included should troubleshooting becomes required.
The terminal connections on the capacitor have 1/4 - 28 socket set screws inserted into each one. The socket set screw is used to make the connection to the buss bar. This eliminates damaging the threads in the aluminum connectors of the capacitor, which ensures a solid connection.
The unit is internally designed as a rigid construction, connecting all the internal components to the front and rear panels. This minimizes the opportunity of the components being affected by rigorous environments normally found in common applications.
Rugged Outer CaseThe PowerPinner 7300 is mounted in a rugged outer case for greater durability, texture, and appearance.
The GRIPNAIL Pistol Grip Weld Gun has a preset spring which applies the exact amount of pressure required to perfectly set a Cup Head Weld Pin. This feature is set and quality checked during its manufacturing and cannot be altered.
The weld tip uses a strong magnet to secure the Cup Head Weld Pin during application.
Optional: A non-conductive shield is available for applications using foil faced insulation. This compresses the foil face around the weld tip and prevents arcing or burn marks on the face of the insulation.
